![]() | Dubai Metro Route 2020 – Main Power Stations |
![]() | Dubai, UAE |
![]() | Main Power Stations |
![]() | 2017 – present |
![]() | 10,000 m2 |

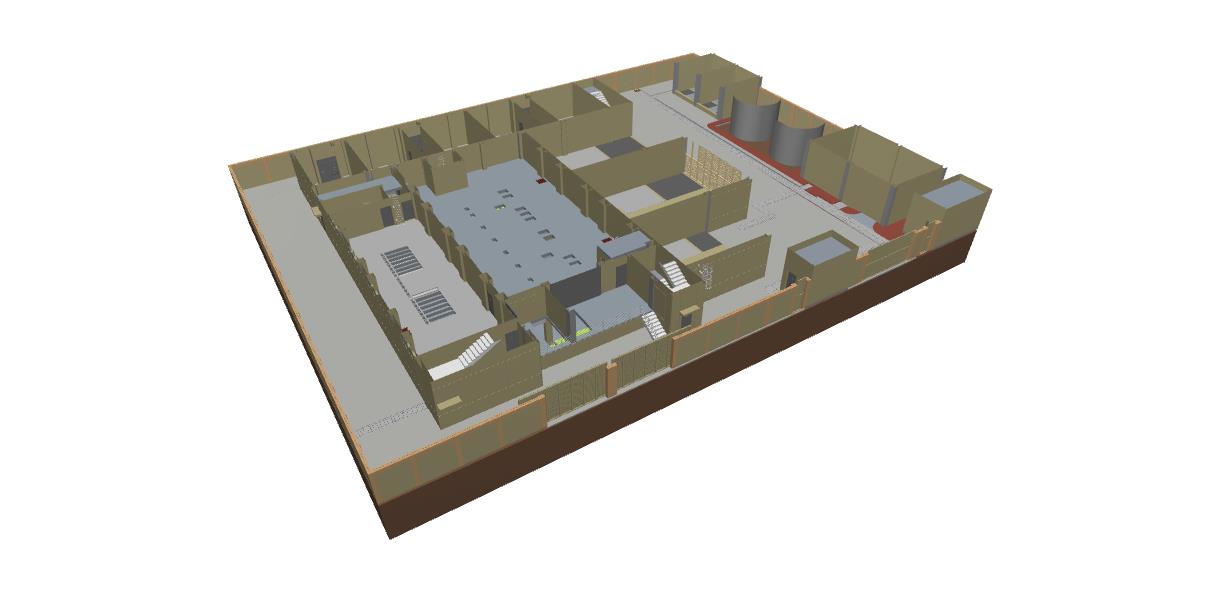

As part of the Dubai Metro 2020 Project, Bexel is providing BIM consulting services to Larsen & Tourbo on a project consisting of three 132/33kV, 2x100MVA Main Power Stations supplying electrical energy to Dubai Expo 2020 Metro Extension Project. L&T’s scope is to supply, install, test and commission three MPSs and associated works. Each of the MPS has a total area of approx. 3000 sqm, containing 2 power transformers each of 100MVA, 132kV Switchgear (GIS), 33kV Switchgear, corresponding capacitor banks, complete 132kV and 33kV relay protection & control equipment, charger, battery and telecom rooms.
BEXEL’S ACTIVITIES
- BIM Management, Develop BIM Project Management Plan with Modelling Standards and Recommendations – PAS 1192-2:2013 BIM Level 2
- Utilizing Client-provided CDE as per PAS 1192-2:2013
- Developing 3D BIM models and compliance with Investor’s BIM standards and guidelines
- Clash Detection workshop coordination for 3D collision detection
- Shopdrawings production
- Create accurate 5D model-based quantity takeoffs of all design disciplines
- 4D Construction Schedule Development and Analysis
- Provide advanced 3D/4D construction visualizations based on the BIM model, in order to improve investors’ insights into the construction process with Building Explorer BIM Analysis Tools, BEXEL’s proprietary software package
- Collect, analyze and process all construction progress data – while generating progress audits, executive reports and analyses
- Provide Planned vs. Actual analysis
- Develop the final As Build 3D BIM model with additional linking As-Built documentation
